- 23"x31" Large Super Luxury LED Shower Set with 4 Types of Rain Fall (Waterfall+Rainfall+Rain Curtain+Massage)
- Multi-Function Shower Head With Handheld Shower and 7-knob Thermostatic Mixing Valve
- Electric Multi-Color Remote Control LED
- Easy to Install. We Will Provide Installation Instructions
- Ten Years Warranty Product - 2 Years Warranty LED Lights
Turn on The Fun in Your Shower Just with Our Thermostatic Shower Head 6 Function Electronic LED Rain Shower System.
This Shower Head is Made of High-Quality Polished Stainless Steel.
1. Product Features
- Surface Finishing: Polished
- Bathroom Faucet Accessory Type: Shower Kits
- Bathroom Faucet Spout Feature: With a Diverter
- Size: 23x31x4 Inch
- Power: Electricity Power
- Power Adapter: 120 v
- Color Change: Multi-Color Remote Control
- Function: Rain, Mist, Waterfall, Curtain. Body Jets
- Thread: 3/4'' NPT (Inlet for Hot & Cold); 1/2" NPT (Outlet for each function)
- Water Flow: 1.8 GPM per function/mode
- Material: 304 Stainless Steel & BRASS
- Surface: Polish
- SHOWER MIXER: 6+1 THERMOSTATIC HIGH-FLOW VALVE
2. Package Include:
- Shower Head
- 7-Knob Thermostatic Mixing Valve
- 2" Body Jet (6 pieces)
- Hand Held Shower
- Remote Control (without Battery) for LED Lights
- Manufacturer Part Number (MPN): CSLED-868002
- cUPC rated
Product Dimensions: 23x31x4 inches
- Size: 23x31
- Style: Contemporary
- Material: Stainless Steel
- Shape: Rectangle
- Power Source: AC/DC
- Voltage: 120 volts
- Installation Method: Screw-In
- Flow Rate: 1.8 GPM per each function
- Hose Length: 60 inches
- Type of Bulb: LED
- Inside Diameter : G1/2" and G3/4" inches
- Handle/Lever Placement: Center
- Handle Material: Metal
- Plug Profile: Ceiling
- Certification: ADA Compliant, cUPC
- Included Components : Valve; 2" Body Jet Spray (6 Pcs); Handheld; Holder; Hose;
- Batteries Included? No
- Batteries Required? No
QUESTIONS & ANSWERSAsk a Question
What are the dimensions of the body jets?
The dimensions for body jets are 2" x 2"
Does this come in European version. 220V?
Yes, it comes in both US Standards, and EU Standards, When an order is placed, we usually ship US standard Model unless customer notified us if they need EU Standard Model.
do you have photos of the gold model to send me or show?
This system comes in three Gold Finish. Either Polished Gold, Brushed Gold, or Rose Gold.
What is the minimum water pressure required for this product to produce the effect depicted in the advertisement?
Minimum water pressure of 40 Psi is required for this system.
I am also installing a steam shower. Will this product be ok in a steam shower environment?
Yes, this Shower System is compatible with steam shower
Hi, can you run all the spray functions at once, or is it only one at a time?
Yes, you can run all the spray functions at once. This particular system comes with 7-Knob mixing Valve. 1 Knob (Thermostatic) to control the water temperature, 4 knobs to control the four functions of the shower head, 1 knob to control the body spray jets, and 1 knob to control the handheld / Spout. Each knob is independent of the other, so you can open one or more at the same time.
The photo shows mist is included with the showerhead and also body sprays but when you go into the detail area it doesn’t have mist?
We have updated the photos to show the Mist function
I would also like to know. If my water pressure isn’t suffice, what can I do to use this product? Are there any other options?
You would need at least 40-50 Psi waster pressure to fully utilize all the functions for this Shower System.
Is it possible to get a thermostat for this unit? I purchased two years ago and thermostat seems to be not working.
Yes, we do sell spare Thermostat Cartridge. but please note, that these Cartridges last for more than 5 years. Did you try to clean it. To do this, Soak the cartridge in white vinegar for an hour. Remove and rinse thoroughly with water. While the cartridge is soaking, turn on your shower to flush the opening. Also make sure the area in the valve that the cartridge sits into is also clean from any debris.
Can I order more jets and another wall mounted hand held shower spray? If so, can all lie is connect to the one set of controls?
Yes, you can order more jets. We do customized shower design. Make sure the water pressure is at least 50-60 psi to handle the addtional items.

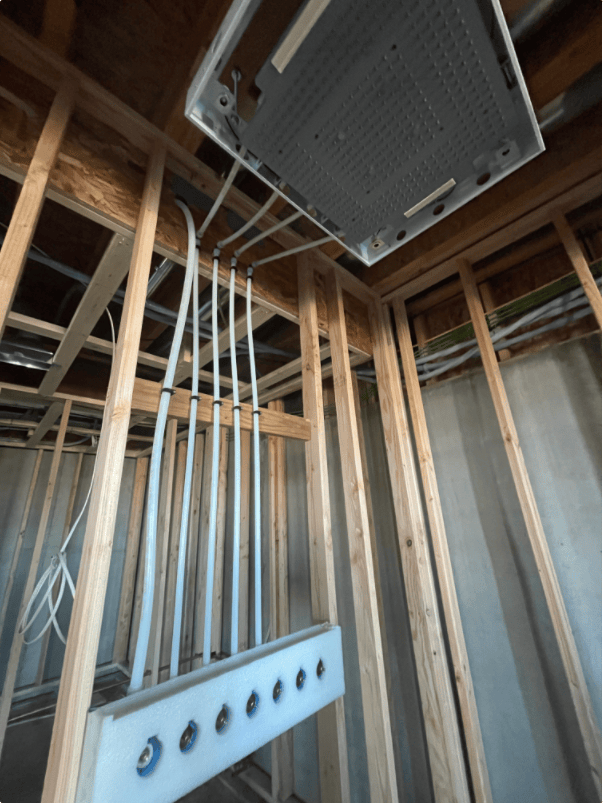

Do you have to mount it to the selling I have a solid concrete house
Yes, it will need to be mounted in to the ceiling, however, you can build a drop box in the ceiling to house it.
I purchased this product but there are no instructions on hooking up the plumbing lines portion of it. Can you please email me instructions. Thanks
Please provide us with your email to send you the installation manual. Thanks
How high should showerhead be off floor?
For the shower to be functional and suit all family members, the shower head should be installed approximately 78 to 108 inches above the floor.
