Cascada Camellia 12" Rain Shower System

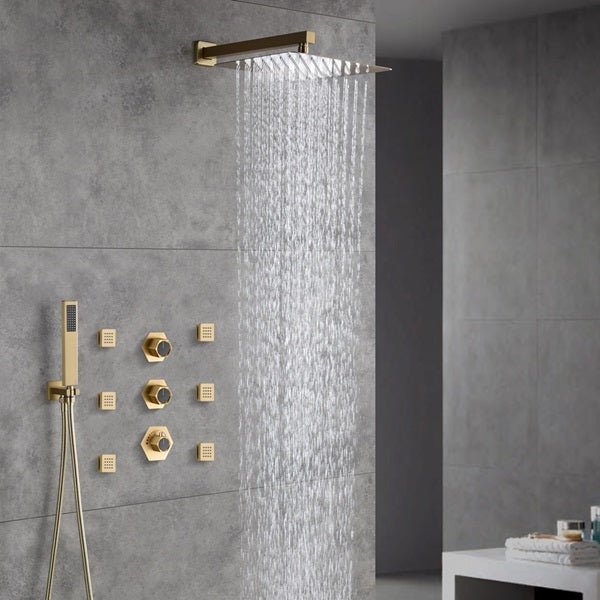

Camellia mounts directly to the wall — no ceiling work required. A 12" square rainfall head delivers wide, even coverage; six 2-inch body jets run simultaneously for side-spray pressure relief; and the included handheld lets you direct water exactly where you need it. Three hexagon thermostatic knobs control temperature and each function independently.

3 Spray Functions

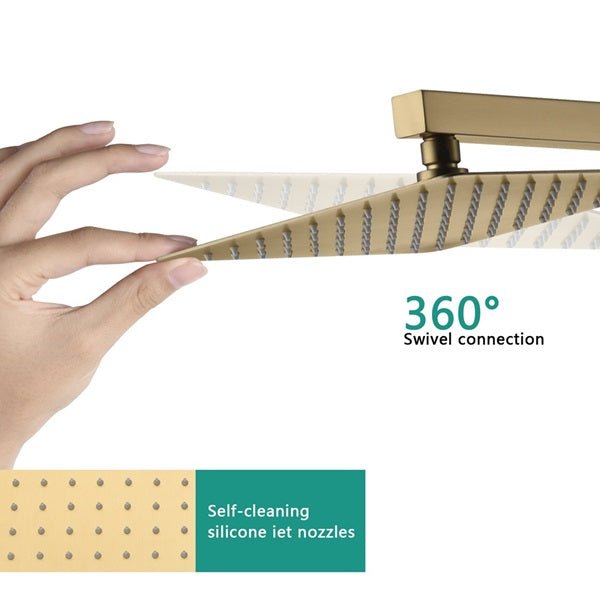

• Rainfall — 12" square head, wide even coverage from the wall arm

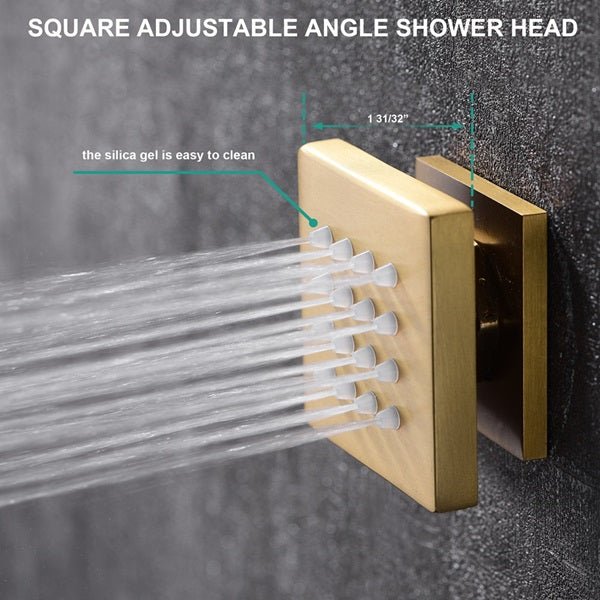

• Body Jets — 6 × 2-inch wall-mounted jets for side-spray muscle relief

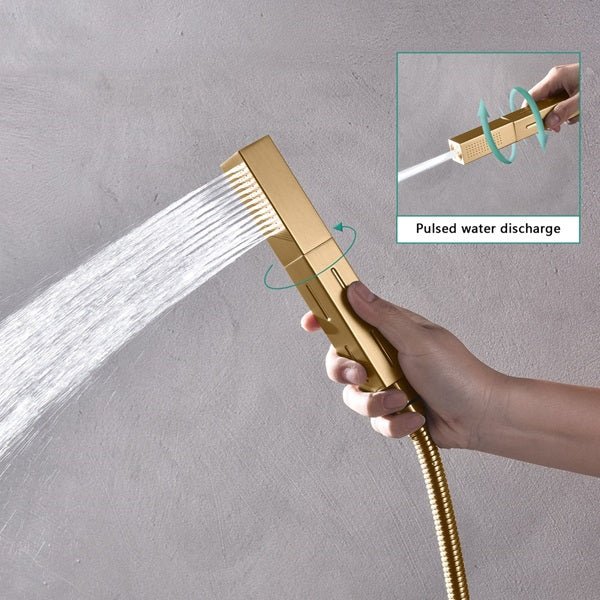

• Handheld Shower — on a 59-inch stainless steel hose; good for rinsing, bathing kids or pets

Each function has its own knob. Run one at a time or combine functions simultaneously.

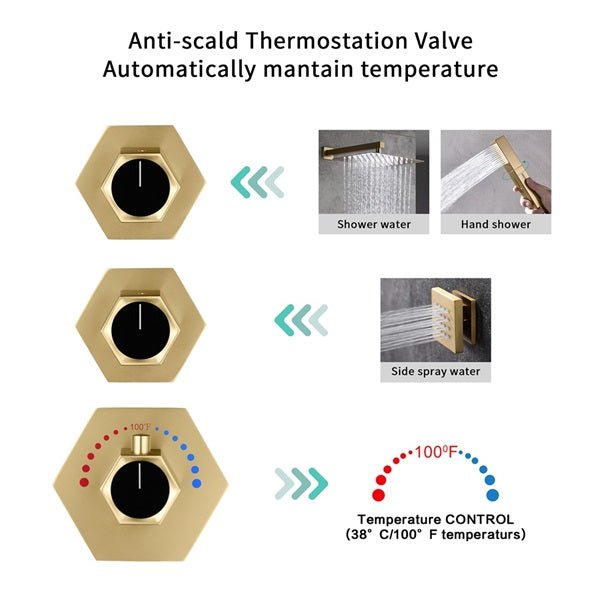

3-Knob Hexagon Thermostatic Valve

A 3-knob brass thermostatic valve locks temperature at your set point regardless of pressure changes elsewhere in the house. The hexagon-profile knobs give a firm grip and a clean, geometric look on the wall.

Available Finishes

The Camellia is available in eight finishes: Polished Stainless Steel, Matte Black, Brushed Nickel, Polished Gold, Brushed Gold, Rose Gold, Oil Rubbed Bronze, and Antique Brass.

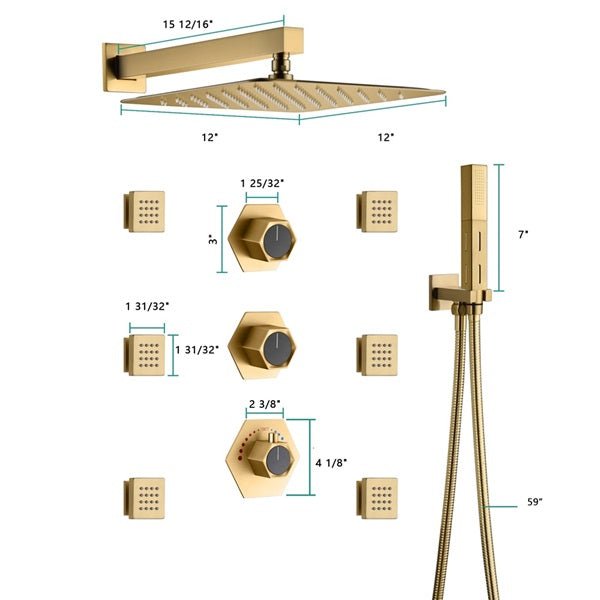

Technical Specifications

• MPN: CSM6421
• Model: Camellia
• Showerhead Size: 12" Square
• Installation: Wall Mounted
• Material: Stainless Steel (head, handheld, hose), Brass (valve)
• Body Jets: 6 × 2-inch
• Functions: 3 (rainfall, body jets, handheld)
• Valve Knobs: 3 (hexagon thermostatic)
• Valve Material: Brass, thermostatic type
• Flow Rate: 1.8 GPM per function
• Max Pressure: 120 PSI
• Hose Length: 59 inches
• Package Dimensions: 21 × 19 × 8 inches
• Gross Weight: 22 lbs
• Batteries: Not required
• Warranty: 10 years (main body)
• Available Finishes: Polished Stainless Steel, Matte Black, Brushed Nickel, Polished Gold, Brushed Gold, Rose Gold, Oil Rubbed Bronze, Antique Brass

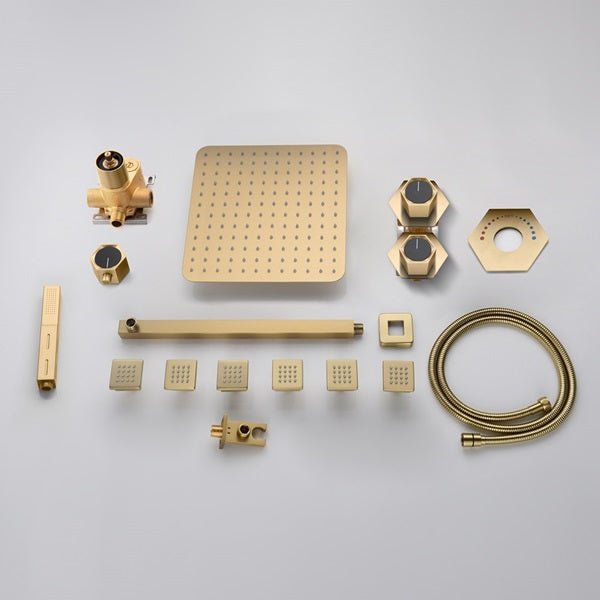

What's Included

1. 12" square shower head
2. Shower arm
3. Hand shower
4. 59-inch stainless steel shower hose
5. 6 × body jets (2-inch)
6. 3-knob thermostatic main body valve
7. 2 × water distribution valves (NPT thread)
8. Installation instructions and hardware
