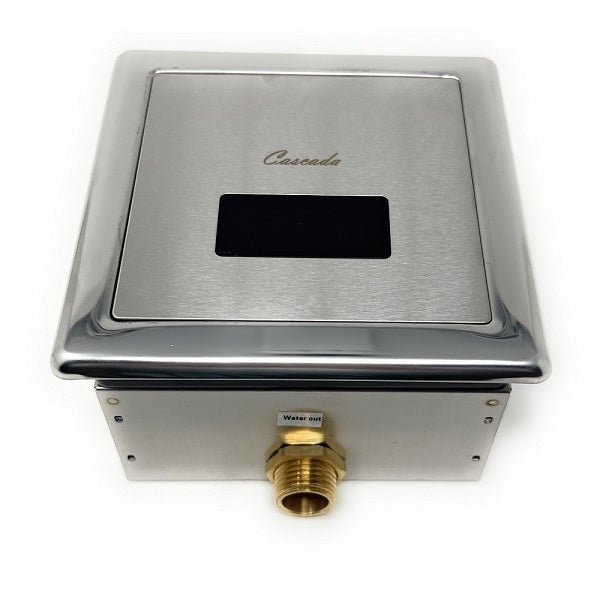

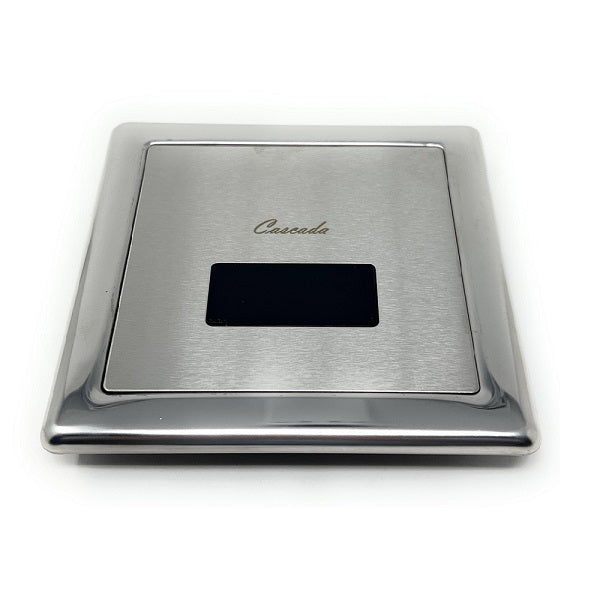

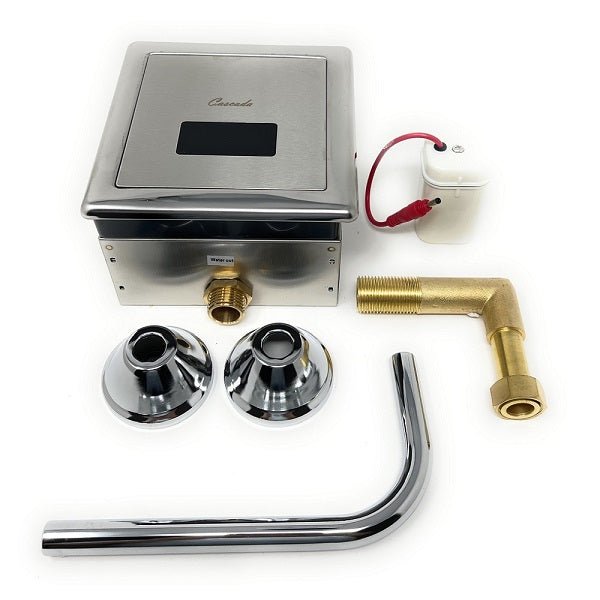

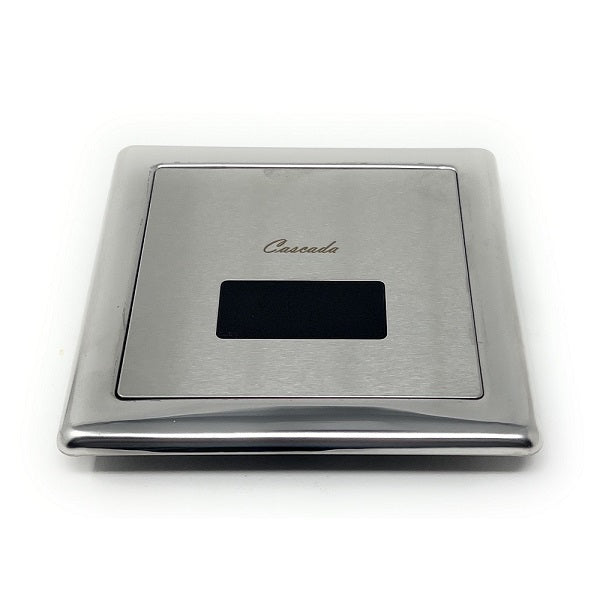

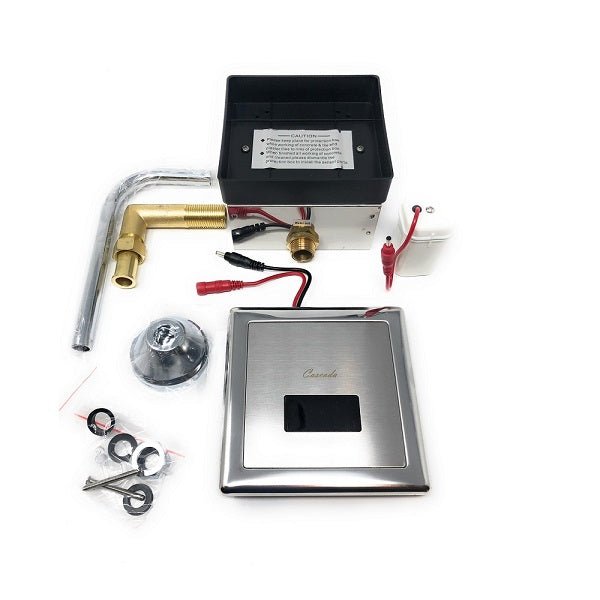

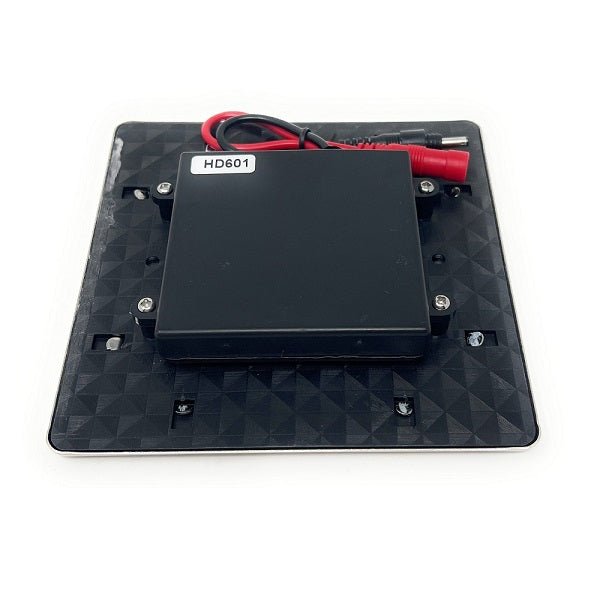

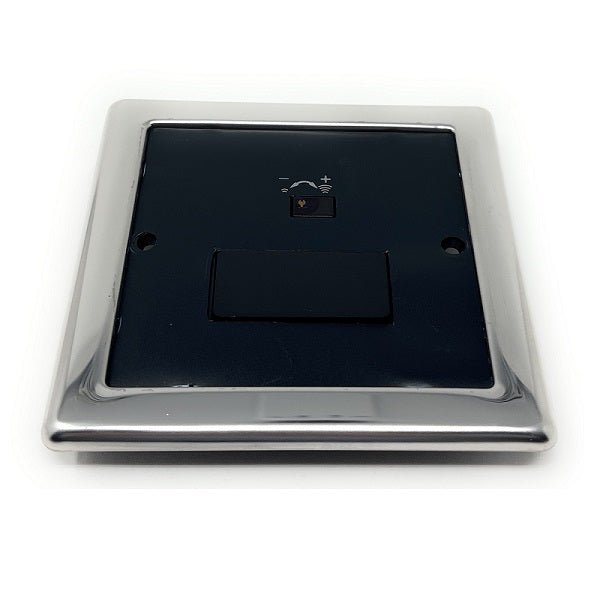

Cascada Concealed Automatic Sensor Urinal Flush Valve (Square)

You save 42%
Sold : 9268 Have a question?

Cascada Showers

Flush Valve

32 In Stock

The electronic flush valves for urinals use an infrared sensor to detect urinal usage and flush automatically after each use. There is no need for the user to touch any surface what prevents vandalism and improves hygiene.

The flush valve will be activated on demand eliminating the odors caused by unflushed urinals. When urinals and toilets are promptly flushed, a germ free, odor free, and automated environment is created.

Urinal Flusher Features:

1. Power: DC 6V
2. Power consumption when not in use: 0.50mW (DC)
3. Ambient temperature: 0.1 - 45ºC
4. Suitable water pressure: 0.05 - 0.6MPa

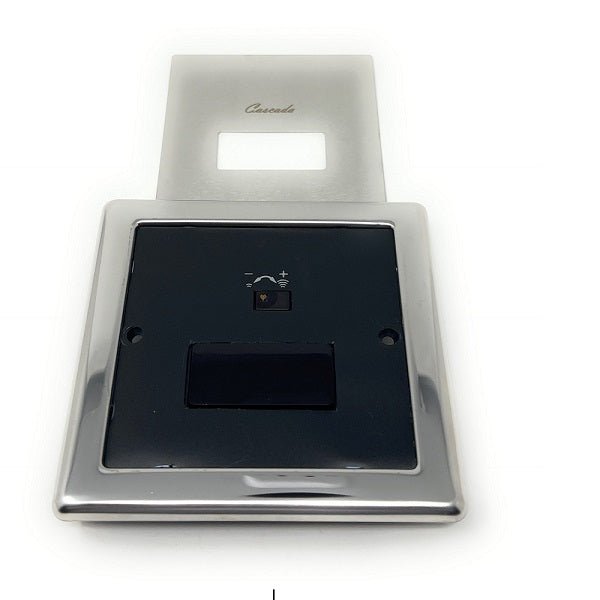

5. Detection zone: factory set 2 1/2 Feet (based on standard inductive board)
6. Diameter of inlet pipe: DN15
7. Diameter of outlet pipe: DN15
8. Dimensions: 5" x 5" inch
9. Protection degree: IP56 Auto

Urinal Flush Valve Functions:

1. Water saving: average water consumption is 1.2 - 3L; in low frequency of use, it is 2 - 4L (based on water pressure of 0.3 - 0.6MPa)
2. Hygienic: the whole rinsing process is done by the flusher itself, clean and efficient. The hands-free feature can keep you free from bacteria infections, especially in busy rest rooms
3. Intelligent: utilizes its micro-computer to control the frequency and duration of use, and then adjusts its flushing intelligently, which can save water more efficiently
4. Low Power Consumption: for DC flushers, 4*AAA alkaline batteries can be used for 2 years at 200 cycles a day

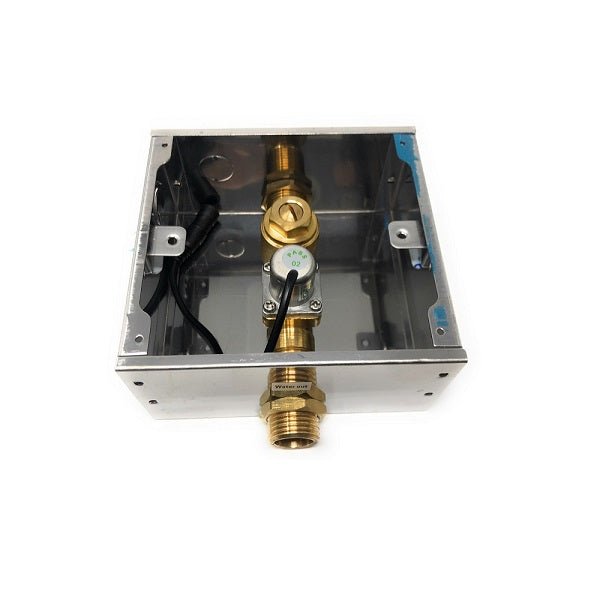

5. Convenient to Maintain: there are water regulating valve and strainer inside, regulation and cleaning can be easily done

Technical Details

  • Manufacturer Part Number (MPN) : CS601ADCB24
  • Item Weight : 4.3 pounds
  • Product Dimensions : 5.2 x 4.2 x 5.2 inches
  • Item model number : HDD434
  • Color : Stainless Steel
  • Style : Square
  • Finish : Stainless
  • Shape : Square
  • Power Source : DC
  • Installation Method : Wall-Mounted
  • Item Package Quantity : 1
  • Flush Type : Automatic
  • Inside Diameter : 1/2 inches
  • Usage : Commercial/Residential
  • Batteries Included? No
  • Batteries Required? Yes


Ask a Question
  • For a 3/4'' rear spud urinal, what else do I need to purchase to install this flush valve?

    Nothing is needed, basically all you need is to connect this with the pipes.
